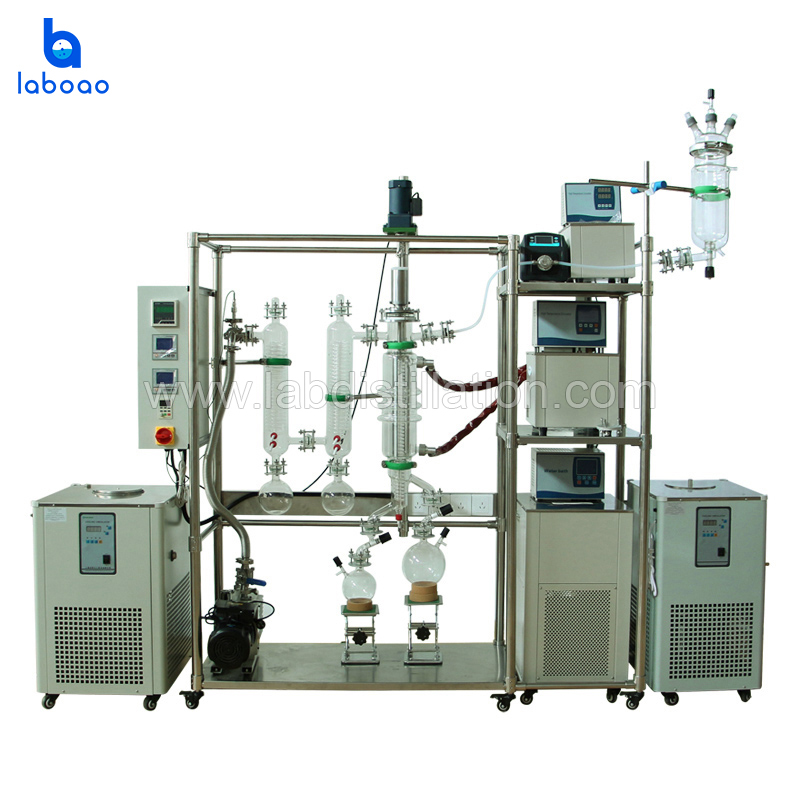

Short Path Distillation Wiped Film Evaporator

Molecular distillation equipment successfully separates volatile from less volatile components for Oils, Fats, Chemicals, Polymers, Nutraceuticals, Fragrances, etc. with a gentle process, utilizing the thin-film wiping action of feed liquid through a heated cylindrical vacuum chamber with high vacuum (i.e. vacuum distillation/evaporation) to realize distillation function.

Available ModelsLMD-B

Magnetic seal components are independently developed
Short residence time so that heat-sensitive substances will not deteriorate
Flexible configuration options for system
Glassware parts with excellent visibility are self manufactured
It's a high efficient apparatus for distillation of animal and plants oil

REQUEST A QUOTE

Download

SPECIFICATIONS

Model	LMD-60B	LMD-80B	LMD-100B	LMD-150B	LMD-200B	LMD-230B
Effective evaporator area (m²)	0.05	0.1	0.15	0.25	0.35	0.5
Internal condensation area(m²)	0.1	0.15	0.2	0.4	0.5	0.65
Outer condensation area(m²)	0.2	0.25	0.3	0.6	0.6	0.6
Barrel diameter (mm)	60	80	100	150	200	230
Feeding volume (L)	1.5	1.5	1.5	2	2	2
Processing flow (kg/h)	0.1-2.0	0.3-4.0	0.5-5.0	1.0-8.0	1.5-10.0	2.0-15.0
Motor power (W)	120	120	120	120	200	200
Blade material	SS316L +PTFE
Lifting for receiving flask	YES (2 SETS)
Cold trap volume (L)	2	2	2	2	2	2
Operation temperature	RT ~300°C
Temperature display meter	Omron brand
Vacuum degree accuracy	0.0001Pa
Frame material	SS304 (SS316 is optional)
Customized	YES
