50L Single Layer Glass Reactor Vessel

Single layer glass reactor is an equipment which is a collaboration of vacuum state, distillation, reflux, stirring, oil/water heating, heating mantle. It can do all kinds of biochemical reactions and synthesis reactions at a constant temperature condition. It is also a colsed system on the whole.
Available ModelsLGR-50F
  • Frequency control, AC induction moto.
  • Supporting glass using GG3.3 high boron silicon material production.
  • PTFE (Ceramic) mechanical component sealing.
  • Overall stainless steel frame structure, stable and reliable without shaking when mixing.
  • Casters with brake fixed, it is convenient and reliable for mobile use.
  • The PTFE discharge valve without dead corner.
  • Computer controlled thermostatic oil bath, the intelligent PID control.
Download


DESCRIPTION


SPECIFICATIONS

Basic specification

Model

LGR-50F

Glass material

GG-17

pot shell material

Spraying antiseptic shell   740*640*960mm

Inner port material

stainless steel      550*320mm

Moving mode

Brake type universal corner wheel

Volume

Ball type 50L

Port No. of reactor cover

7

Distance between discharge to   floor

450mm

Vacuum

0.098Mpa

Stirring speed

0-450rpm

Stir rod diameter

12mm

Stir power and voltage

120W1/3   220V/50Hz

Heating power  and voltage

8KW      380V/50Hz

Overall size (mm*mm*mm)

800*640*2200

Package size (mm*mm*mm)

1440*720*890  0.93CBM

Gross weightKG

90

Configuration list

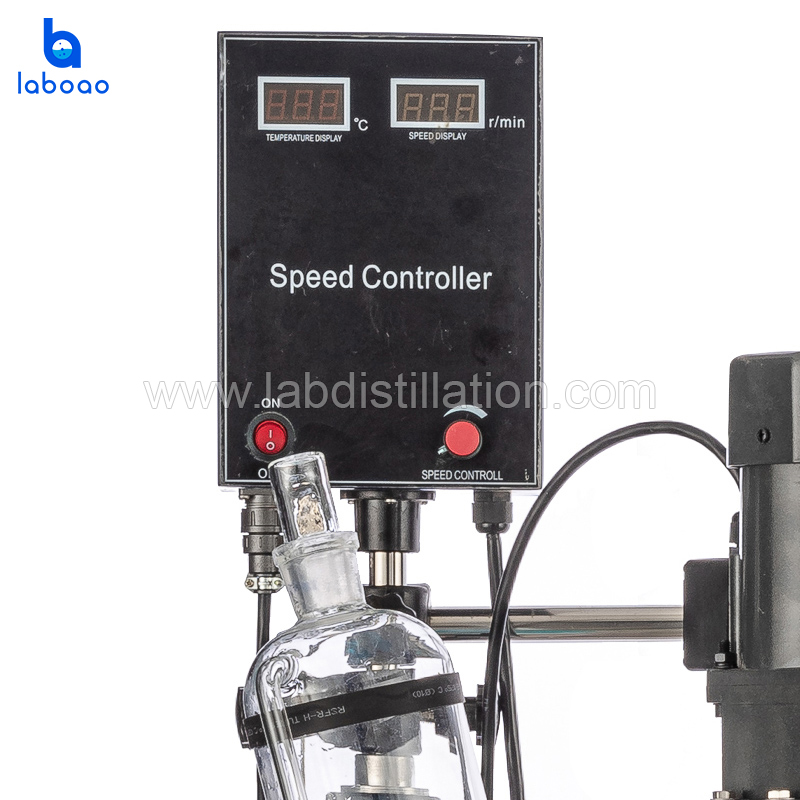

Speed display mode

Electronic stepless speed   regulation

Motor

Low speed booster motor, speed   ratio 3: 1

Speed display mode

LCD digital display

Temperature display

digital display

Seal

PTFE seal, 70 flange stir port

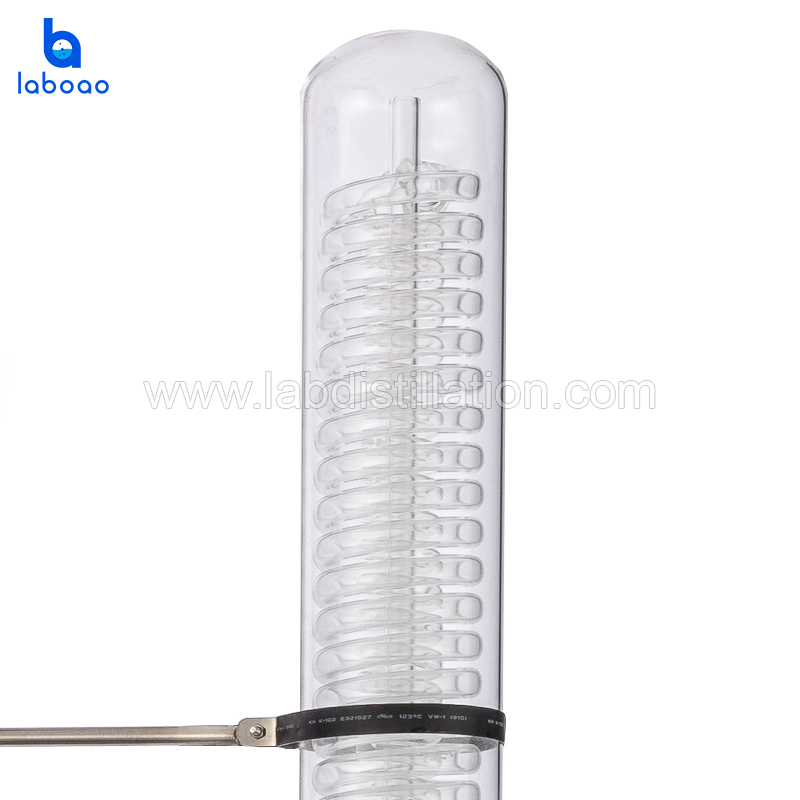

Condenser

Vertical high efficiency double   reflux condenser 120*640mm, standard 40#

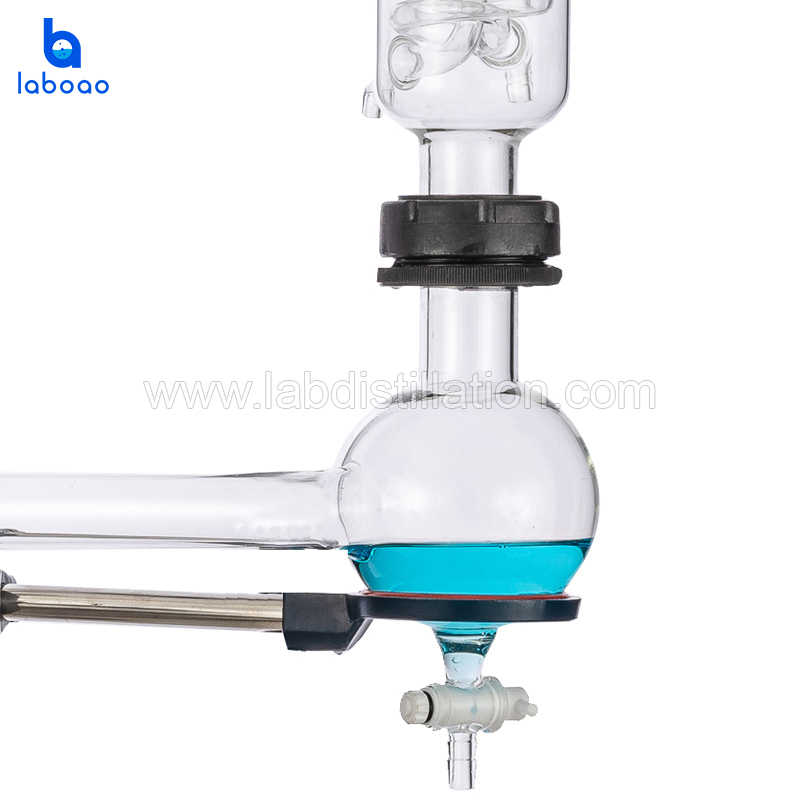

Reflux (distillation) device

Return bend with feeding switch,   50# ball mill port

Drop adding device

2L Constant pressure funnel, 34   standard

Pressure release device

standard 34# pressure release   valve

Temperature tube

standard 24#

Solid adding (cleaning) port

120 flange port with PTFE cover

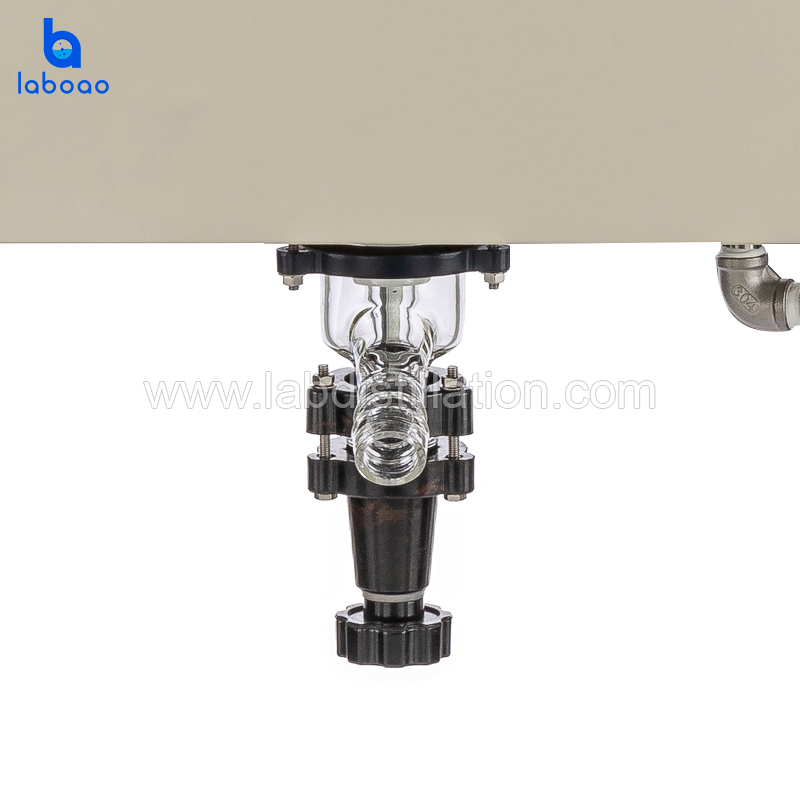

Discharge

glass discharge valve, 80 flange port

Vacuum display mode

Vacuum gauge

Mixing connection

universal joint link

Stir rod

Anchor type, Stainless steel rod   with PTFE
