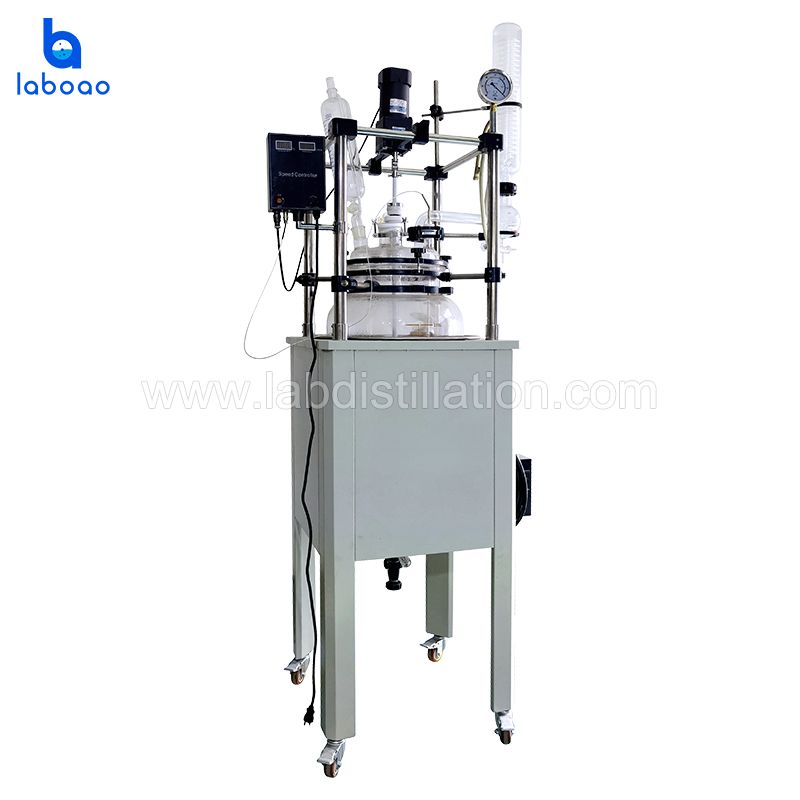

100L Single Layer Glass Reactor Vessel

Single layer glass reactor is an equipment which is a collaboration of vacuum state, distillation, reflux, stirring, oil/water heating, heating mantle. It can do all kinds of biochemical reactions and synthesis reactions at a constant temperature condition. It is also a colsed system on the whole
Available ModelsLGR-100F
  • Frequency control, AC induction moto.
  • Supporting glass using GG3.3 high boron silicon material production.
  • PTFE (Ceramic) mechanical component sealing.
  • Overall stainless steel frame structure, stable and reliable without shaking when mixing.
  • Casters with brake fixed, it is convenient and reliable for mobile use.
  • The PTFE discharge valve without dead corner.
  • Computer controlled thermostatic oil bath, the intelligent PID control.
Download

DETAILS

100L Single Layer Glass Reactor Vessel detail - Heating bath with heating coil,temperature range is room temperature to 180℃. Round reaction kettle for 1L-100L, cylinder kettle for 100L-200L.
1. Heating bath with heating coil,temperature range is room temperature to 180℃. Round reaction kettle for 1L-100L, cylinder kettle for 100L-200L.
100L Single Layer Glass Reactor Vessel detail - A total of 6 ports on the top of the kettle body
2. A total of 6 ports on the top of the kettle body
100L Single Layer Glass Reactor Vessel detail - Constant pressure funnel, can feed liquid in reaction kettle.
3. Constant pressure funnel, can feed liquid in reaction kettle.
100L Single Layer Glass Reactor Vessel detail - Speed controller, can display real-time temperature and speed, speed is adjustable.
4. Speed controller, can display real-time temperature and speed, speed is adjustable.
100L Single Layer Glass Reactor Vessel detail - Discharge valve for reaction kettle, glass material with PTFE sealing,flange port is easy todisassemble and clean, drain valve for bath.
5. Discharge valve for reaction kettle, glass material with PTFE sealing,flange port is easy todisassemble and clean, drain valve for bath.
100L Single Layer Glass Reactor Vessel detail - One button for heating, can set and display real time temperature in bath
6. One button for heating, can set and display real time temperature in bath

SPECIFICATIONS

Basic specification

Model

LGR-100F

Glass material

GG-17

pot shell material

Spraying antiseptic shell  640*640*1200

Inner port material

stainless steel   550*650mm

Moving mode

Brake type universal corner wheel

Volume

100L Round or Cylindrical   type(optional)

Port No. of reactor cover

7

Distance between discharge to   floor

450mm

Temperature range

-80 to 250 degree

Vacuum

0.098Mpa

Stirring speed

0-450rpm

Stir rod diameter

15mm

Stir power and voltage

200W1/3   220V/50Hz

Heating power  and voltage

8KW      380V/50Hz

Overall size (mm*mm*mm)

730*630*2600

Package size (mm*mm*mm)

1900*780*870   1.29CBM

Gross weightKG

120

Configuration list

Speed display mode

Electronic stepless speed   regulation

Motor

Low speed booster motor, speed   ratio 3: 1

Speed display mode

LCD digital display

Temperature display

digital display

Seal

PTFE seal, 60 flange stir port

Condenser

Vertical high efficiency double   reflux condenser 120*640mm, standard 40#

Reflux (distillation) device

Return bend with feeding switch,   50# ball mill port

Drop adding device

2L Constant pressure funnel, #40   standard

Pressure release device

standard 34# pressure release   valve

Temperature tube

standard 24#

Solid adding (cleaning) port

120 flange port with PTFE cover

Discharge

glass discharge valve, 80 flange port

Vacuum display mode

Vacuum gauge

Mixing connection

universal joint link

Stir rod

Anchor and Spiral type, Stainless   steel rod with PTFE
