1L-5L Jacketed Glass Crystallization Filter Reactor

LCR-1L/2L/3L/5L

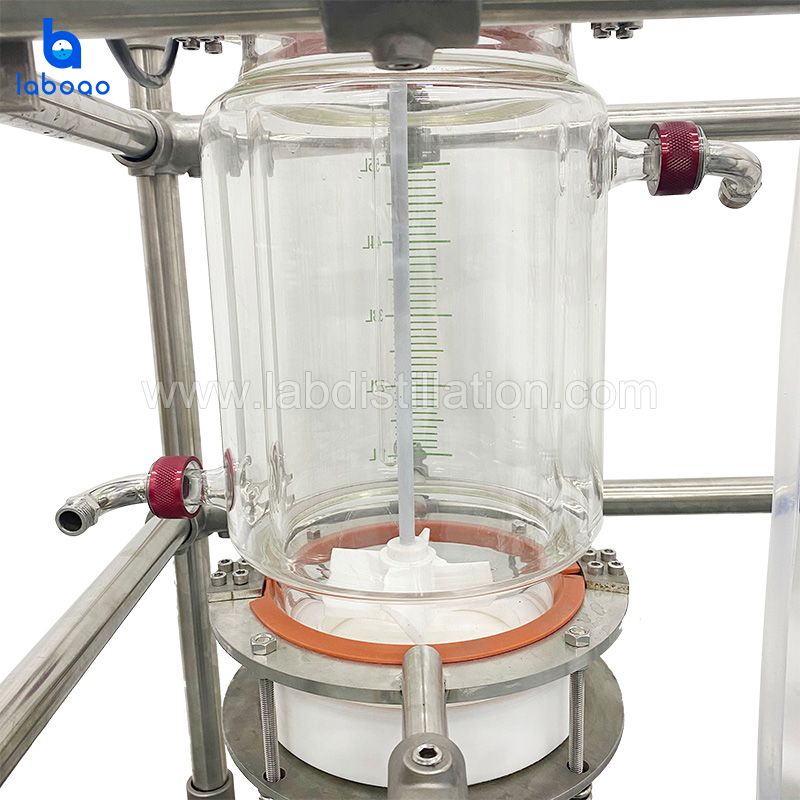

The 1l-5l jacketed glass crystallization filter reactor is vacuum filtered, and can also be used for concentration, distillation, extraction, crystallization and other reactions. It is commonly used in biopharmaceuticals, peptide synthesis, scientific research experiments, and is an ideal instrument for small-scale and pilot-scale production.
Request QuotationChat Now
  • Whatsapp

    WhatsApp Chat

  • WeChat

    WeChat Chat

Download

SPECIFICATIONS

Model

LCR-1L

LCR-2L

LCR-3L

LCR-5L

Capacity

1L

2L

3L

5L

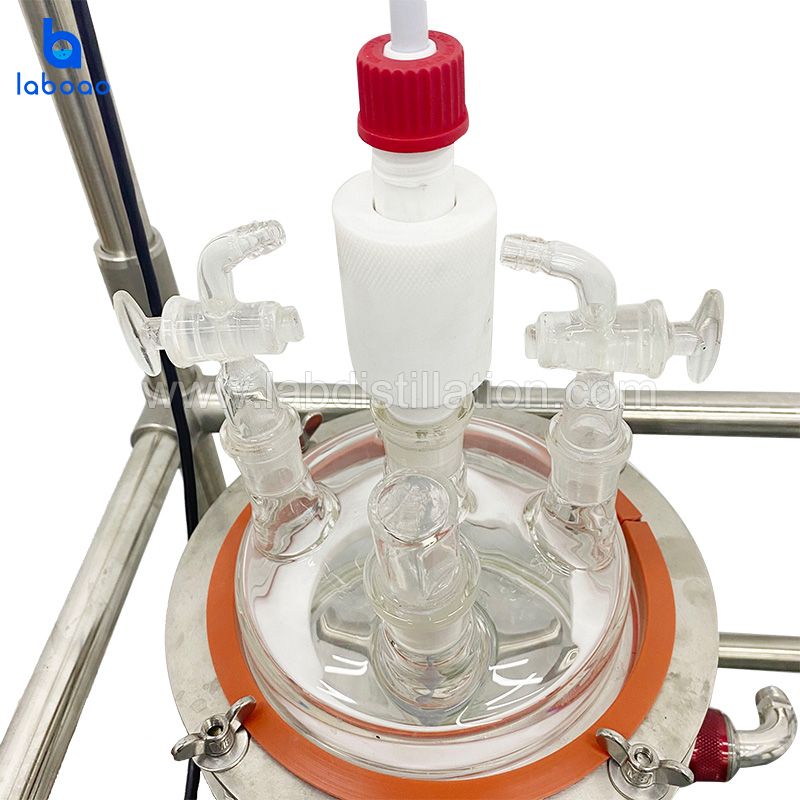

Number of   lid openings

6(stir port,   temperature measure port, liquid port, solid port, vacuum port, spare port)

PTFE mixing   paddle

0-400rpm

Motor speed

304   stainless steel

Speed mode

Single layer   push type

temperature   display

Frequency

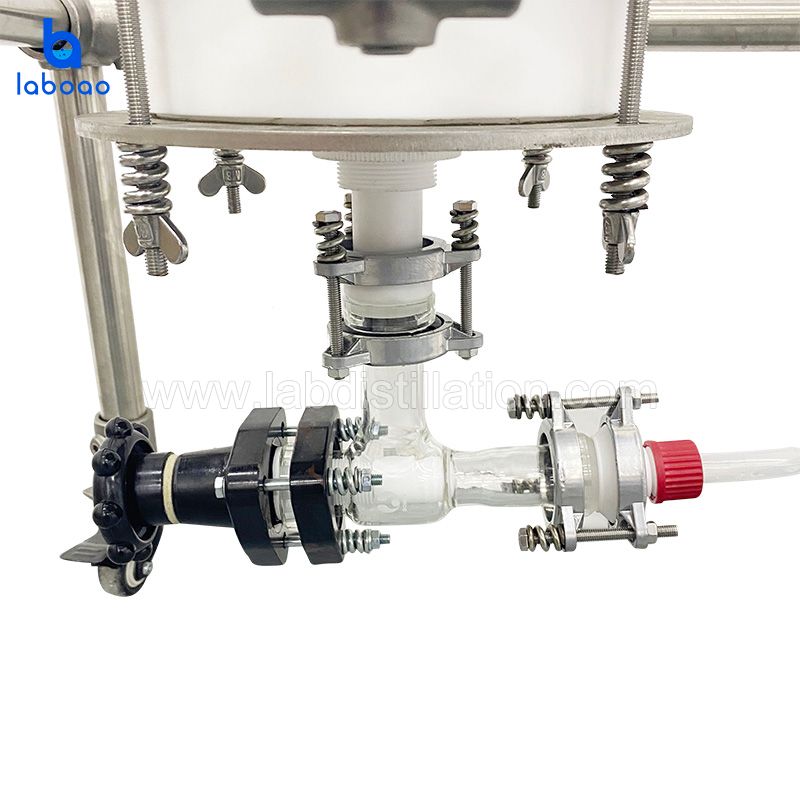

Discharge   valve

Digital   Display

Filter   chassis

PTFE core   three-way valve can pass hydrogen

Filter plate

Removable   PTFE body

Filter   diameter

95mm

159mm

Sand core   aperture

40-60μm optional

Liquid feed   valve

PTFE   three-way valve

Sealing   method

Self-lubricating   mechanical seal

Use   environment temperature

5℃~40℃

Voltage

220V/50Hz (can   be customized)

Optional

1、Spray device(2 can be used to clean   the sign body without dead angle at 360° through negative pressure)

2、Explosion-proof motors

3、Explosion-proof inverter
